Description

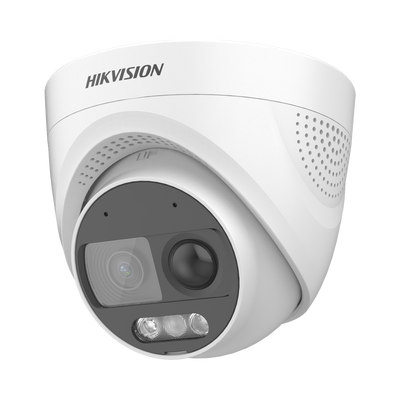

About HIKVISION DS-2CE72DF3T-F

• Up to 40 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
• 2 MP full time color turret camera
• 24/7 full color imaging
• Warm supplemental light with 20 m range
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images

• Camera
• Image Sensor 2 MP CMOS
• Max. Resolution 1920 (H) × 1080 (V)
• Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Signal System PAL/NTSC
• Slow Shutter Max. 16 times
• Light Alarm Solid Light Alarm (White Light)

• Lens
• Lens Type2.8mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°

  3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°

  6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°

• Lens Mount M12

• Illuminator
• Supplement Light Type White Light
• Supplement Light Range Up to 40 m
• Smart Supplement Light Yes

• Image
• Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
• Image Settings Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, AGC
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Day/Night Mode Color
• Wide Dynamic Range (WDR)≥130 dB
• Image Enhancement WDR, BLC, HLC, Global, HLS
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR/2D DNR
• White Balance Auto/Manual

• Interface
• Video Output Switchable TVI/AHD/CVI/CVBS

• Event
• Motion Detection 4 programmable motion areas

• General
• Material Main body: Metal, Enclosure: Plastic
• DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
• Weight Approx. 348.5 g (0.77 lb.)
• Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Communication HIKVISION-C
• Language English
• Power

  12VDC ± 25%, Max. 4.2 W

  *You are recommended to use one power adapter to supply the power for one camera.

• Approval
• ProtectionIP67

Manufacturer Hilkinson
