2.639,00 AED + VAT 5%
2.639,00 AED + VAT 5%
• Up to 16CH 12megapixel supported
• H.265, H.264, MJPEG codec supported
• WiseStream support
• 180Mbps network camera recording
• Plug & play by 16 PoE/PoE+ ports
• Max. 4HDDs, e-SATA storage supported
• HDMI / VGA local monitor

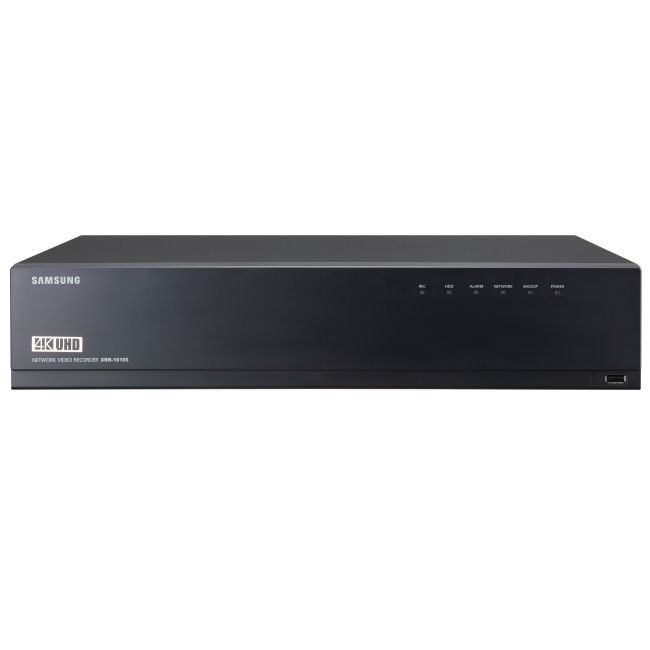

XRN-1610S Description
The XRN-1610S series network video recorders support 4K UHD resolution and up to 16 channels of video. Additional features include 12MP IP camera recording/display, H.265/H.264/MJPEG streaming, auto-recovery backup, 4 fixed internal SATA HDDs (24TB max.), e-SATA/iSCSI storage, WiseStream compression Technology, dual monitor output, Hallway View support and fisheye dewarping on web and CMS. The XRN-1610S is ideal for small to medium size applications that require high resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream technology.
XRN-1610S Specification
| Display | ||
| Video | Inputs / Resolution | Up to 16CH / CIF ~ 12MP |
| Protocols | Samsung, ONVIF | |
| Live | Local Display | 1x HDMI, 1x VGA dual monitor |
| Multi Screen Display | [Local monitor] 1 / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence, [Web] 1 / 4 / 9 / 16 / Auto sequence | |
| Performance | [Local monitor] 12MP (30fps), 8MP (120fps), 5MP (180fps), 3MP (240fps), 2MP (480fps), 720p (480fps), D1 (480fps) [Web] 5MP (30fps), 3MP (60fps), 2MP (120fps), 720p (240fps), D1 (480fps) |
|
| Performance | ||
| Operating System | Embedded | Linux |
| Recording | Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
| Recording Bandwidth | 180Mbps | |
| Resolution | CIF ~ 12MP | |
| Mode | Manual, Schedule (Continuous / Event), Event (Pre / Post) | |
| Event Trigger | Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face detection, Audio Detection), Defocus camera event | |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out | |
| Search & Playback | Playback Bandwidth | 32Mbps (16CH simultaneously) |
| Performance | Max. 4 users (Set 1, Remote 3) | |
| Mode | Date & Time (Calendar) / Event log list / Text search (POS, ANPR) | |
| Simultaneous Playback | Max. 16CH (Local monitor, Network) | |
| Resolution | CIF ~ 12MP | |
| Fish-eye Dewarping | Processed on Web / CMS | |
| Playback Control | Fast/Slow Forward/Backward, Move one step up/down | |
| Storage | Default Built-in | 0TB ~ 6TB |
| Internal / External | 4 SATA / 1 e-SATA, iSCSI (Max. 384TB * PROMISE VESSRAID R2600) | |
| Backup | File Backup | BU/EXE (GUI), JPG/AVI (Network) |
| Function | Max. 16CH playback, Date-time/title display | |
| Sensor | Input / Output | 8 / 4 (NO/NC selectable) |
| Audio | Input / Compression | 16CH (Network) / G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-way (Pass-through between camera and SSM) | |
| Netw ork | ||
| Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) | |
| DDNS | iPOLiS DDNS | |
| Transmission Bandwidth | Max. 256Mbps (iSCSI off ) (128Mbps, iSCSI on) | |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 | |
| IP | IPv4 / IPv6 | |
| Security | IP address filtering, User access log, 802.1x authentication, Encryption (ID/PW, Recording, Transmission, Backup) | |
| Language | GUI / Web | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai (GUI) |
| OS | Supported OS : Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above) | |
| Web Browser | Plug-in free Webviewer – Supported Browser : Google Chrome 47, MS Edge 20 – WMF : 1CH live (800 x 600), Setup Plug-in Webviewer – Supported Browser : MS Explore 11, Mozilla Firefox 43 , Apple Safari 9 * Mac OS X only |
|
| Viewer Software | Type | SSM, Webviewer, SmartViewer, iPOLiS mobile viewer |
| CMS Support | SDK / CGI (SUNAPI) | |
| Functions | ||
| Camera Setup | Register | PnP mode, Manual mode |
| Setup Items | 1) IP address, Add profile edit, Bitrate, Compression, GOP, Quality 2) Camera event setup – MD, VA : Tampering, Enter / Exit, Passing (Virtual- line), (Dis)Appear, Face detection, Audio detection) 3) Video setup (Simple focus, Brightness / Contrast, Flip / Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS) 4) Fisheye dewarping, Hallway view setup, Camera webpage |
|
| Camera Control | PoE | Monitor PoE power consumption, On/Off control for each PoE camera Remote reset for each PoE camera |
| Time Sync. | NVR time protocol for PoE camera (Time sync based on NVR time) | |
| Easy Configuration | Setup Wizard (Language Date/Time, Network, Auto camera configuration) * Selectable between PnP and manual mode |
|
| ARB (Auto Recovery Backup) | Yes | |
| PTZ | Control / Preset | Via GUI, Webviewer, SPC-2000 (USB) / 255 presets |
| Smart Phone | OS / Protocol Support | Android, iOS / RTP, RTSP, HTTP, CGI (SUNAPI) |
| Control | Live (16CH) : Multi-profile support, Playback (1CH, Max. 2MP) | |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 | |
| System Control | Mouse, IR Remocon, Web, SPC-2000 (USB) | |
| Indicator / Interface | ||
| Front | Indicator | Power status LED 1ea, HDD action LED 1ea, Alarm status LED 1ea Record status LED 1ea, Network action LED 1ea, Backup LED 1ea |
| USB | 2ea (Front 1ea / Rear 1ea) | |
| Connections | HDMI | Main : 1ea (Both support Live / PB / Setup) Support up to 4K (3840 x 2160, Single monitor mode) |
| VGA | Sub : 1ea (Support live screen up to 16 div. mode) | |
| Audio / Serial | Out 1ea (RCA, Line) / 1ea for UPS | |
| Ethernet | 16ea (PoE, 100Mbps) (Plan to support as project basis) 2ea (LAN/WAN, 1Gbps) – LAN : Downlink to camera / PoE Hub – WAN : Uplink to CMS |
|
| Alarm | In 8ea (Terminal block) / Out 4ea (Terminal block) | |
| Reset / Power Cord | Yes (Factory reset, Alarm reset) / Included | |
| System | ||
| Log | Log List | Max. 20,000 (System log, Event log each) |
| Genera l | ||
| Electrical | Input Voltage / Current | 100 ~ 240V AC |
| Power Consumption | Max. 271.9W (4 HDDs, PoE on), Max. 51.9W (4 HDDs, PoE off ) * PoE Budget : Max. 220W |
|
| Environmental | Operating Temperature | +0°C ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 20% ~ 85% RH | |
| Mechanical | Color / Material | Black / Metal |
| Dimensions (WxHxD) | 440.0 x 88.0 x 384.8mm (17.32″ x 3.46″ x 15.15″) (2U) | |
| Weight | 5.1Kg (11.24 lb) | |
| Product Code | Description |
XRN-1610SP/CU |
Up to 16CH 12megapixel supported. H.265, H.264, MJPEG codec supported. WiseStream support. 180Mbps network camera recording. Plug & play by 16 PoE/PoE+ ports. Max. 4HDDs, e-SATA storage supported. HDMI / VGA local monitor. No HDD. |
XRN-1610P1T/CU |
Up to 16CH 12megapixel supported. H.265, H.264, MJPEG codec supported. WiseStream support. 180Mbps network camera recording. Plug & play by 16 PoE/PoE+ ports. Max. 4HDDs, e-SATA storage supported. HDMI / VGA local monitor. 1TB HDD |
XRN-1610P2T/CU |
Up to 16CH 12megapixel supported. H.265, H.264, MJPEG codec supported. WiseStream support. 180Mbps network camera recording. Plug & play by 16 PoE/PoE+ ports. Max. 4HDDs, e-SATA storage supported. HDMI / VGA local monitor. 2TB HDD |
| Details | XRN-1610S Key Features • Up to 16CH 12megapixel supported |
|---|---|
| NVR Channel | 16 Channel |
