Description

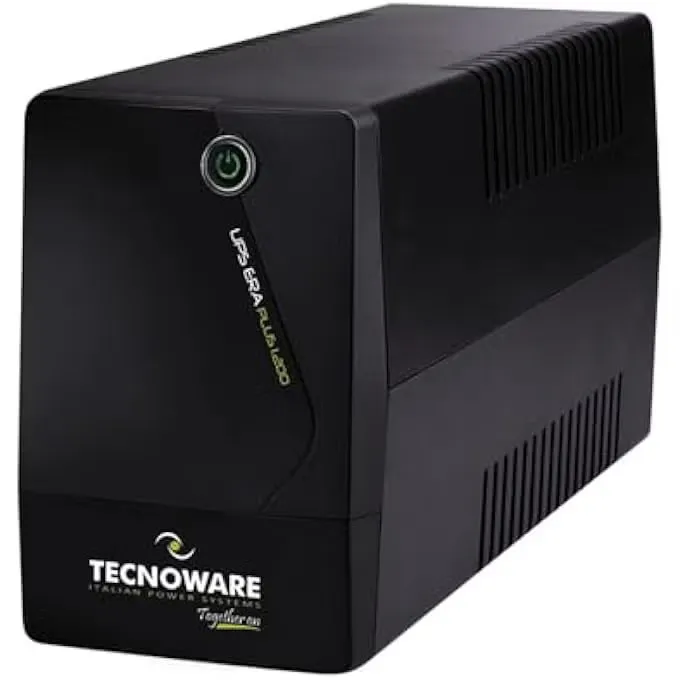

Tecnoware FGCERAPL2002IEC ups era plus 2000 VA features:
FGCERAPL2102IEC :UPS ERA PLUS 2000VA, 2 12V 9Ah batteries, has 1 IEC input and 6 IEC outputs protected against Black-Out, overvoltage and undervoltage. Line Interactive Plus technology. 13x18x32 cm, Weight 14 kg.
Equipped with On-Off button with integrated multi-function LED with audible alarm for signalling the operating status and USB interface for ups uninterruptible power supply control and on/off programming using the free win/mac tecnomanager software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem/router, Cash Register. Totally silent.
- MAXIMUM PROTECTION: Against power cut, voltage surges and electromagnetic interference. Autonomy up to 30 minutes with 1 PC or 70 minutes with modem router (2000 VA power).
- GUARANTEED PROTECTION: For Windows PC, DVR and Video Surveillance systems, WiFI ADSL / Fiber Modem, Cash Register. Its use with devices equiped with an active PFC power supply is not recommended (Server, PC game, Video Game Console, Workstation, Mac Computer), lamps and electric motors for which the Tecnoware EXA Plus line is recommended.
- INTERNAL VOLTAGE STABILIZER: Tecnoware’s AVR Plus technology constantly stabilizes the output voltage, protecting every connected device from mains fluctuations and limiting the risk of overload, short circuit or overheating.
- ABSOLUTE SILENCE: No noise or rustle, this UPS can be installed in any home or office environment.
- MANAGEMENT SOFTWARE: USB port for UPS control / monitoring and programming of on / off via Tecnomanager software
Technical Specification and Features ERA PLUS 2000 VA
| Code Part Number | FGCERAPL2002IEC |
| Nominal power | 2000 VA |
| Active power | 1400 W |
| Power factor | 0,7 |
| Technology | Line Interactive with stabilizer |
| Cooling | Natural |
| Audible noise | 40 dBA to 1 m |
| Dimension (UPS) WxHxD | 13×18,2×32 cm |
| Dimension (with packing) WxHxD | 23,2×27,3×39 cm |
| Weight | 8,6 Kg |
Input FGCERAPL2002IEC |
|
| Number of phases | 1Ph+N |
| Nominal voltage | Single-phase 230Vac |
| Input voltage range | +20%/-25% |
| Nominal frequency | 50/60 Hz (automatic selection) |
| Input frequency range | +/-5% |
Output FGCERAPL2002IEC |
|
| Number of phases | 1Ph+N |
| Nominal voltage | Single-phase 230Vac |
| Voltage regulation (Line mode) | AVR (Automatic Voltage Regulation) |
| Voltage regulation (Battery mode) | +/-5% |
| Frequency | 50/60 Hz (automatic selection) |
| Inverter waveform | Modified sinewave |
| Overload capability | 130 % |
| Transfer time | 2 ms (typical) |
Battery |
|
| Type | Lead acid, sealed, maintenance free |
| Backup time (typical) | 10-90 min |
Environmental specification |
|
| Working temperature | From 0 to 55 °C (reccomended from 20 to 25 °C) |
| Humidity | 95% without condensation |
| Maximum altitude | 3000 m |
| IP protection | IP20 |
| Certifications | CE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3) |
FGCERAPL2002IEC Tecnoware UPS ERA PLUS 2002, 2 x 12V 9Ah batteries, It has 1 IEC input and 6 IEC outputs protected against Black-Out, overvoltages and undervoltages. Line Interactive Plus technology. 13x18x32 cm, Weight 14 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status and USB interface for controlling UPS continuity and programming on / off via the free UPS management Win / Mac Software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.
Tecnoware FGCEDP3602RTIEC UPS EVO DSP PLUS 3.6KVA price in Dubai UAE
Tecnoware FGCEDP1202RTIEC 1.2KVA UPS EVO DSP PLUS
APPLICATIONS
- Complete protection against blackouts and voltage surges (overvoltage and undervoltage)
- Recommended for Personal Computers, DVR/NVR and video surveillance systems, Modem adsl/fiber, switch/router, cash registers
- Not suitable for power supplies with Active PFC circuitry (servers, PC games, game consoles, workstations, Mac computers), lamps and electric motors.
- AVR voltage stabilization electronic circuit
- n°2 Italy/Schuko output sockets and n°1 schuko input cable
- Blackout protected output sockets
- Overvoltage protected output sockets
- Multi-function LED and on-off button
- USB port for UPS control/monitoring and on/off programming via Tecnomanager software
- TecnoManager UPS management software compatible with Windows, Mac OS X, Linux etc.
