Description

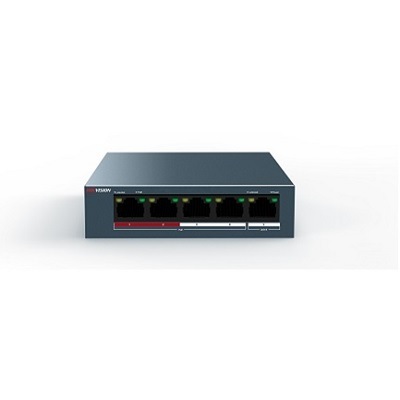

About HIKVISION DS-3E0105P-E/M

• 4 Port Fast Ethernet Unmanaged POE Switch with single uplink
• Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

• Network Parameters
• Port Number 4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
• Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
• Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding Mode Store-and-forward switching
• Working Mode Standard mode (default); Extend mode
• High Priority Ports Ports 1 to 2
• Ports For Long-Distance Transmission Ports 1 to 4
• MAC Address Table 1 K
• Switching Capacity 1 Gbps
• Packet Forwarding Rate 0.744 Mpps
• Internal Cache 448 Kbits

• PoE Power Supply
• PoE Standard IEEE 802.3af, IEEE 802.3at
• PoE Power Pin Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
• PoE Port Ports 1 to 4
• Max. Port Power 30 W
• PoE Power Pudget 35 W
• Max. Power Consumption 38 W

• General
• Shell Metal material, fan-free design
• Gross Weight 0.48 kg (1.06 lb)
• Net Weight 0.2 kg (0.4 lb)
• Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity 5% to 95% (no condensation)
• Storage Humidity 5% to 95% (no condensation)
• Power Supply 48 VDC, 0.8 A
• Power Consumption In Idle 3 W

Manufacturer Hilkinson
