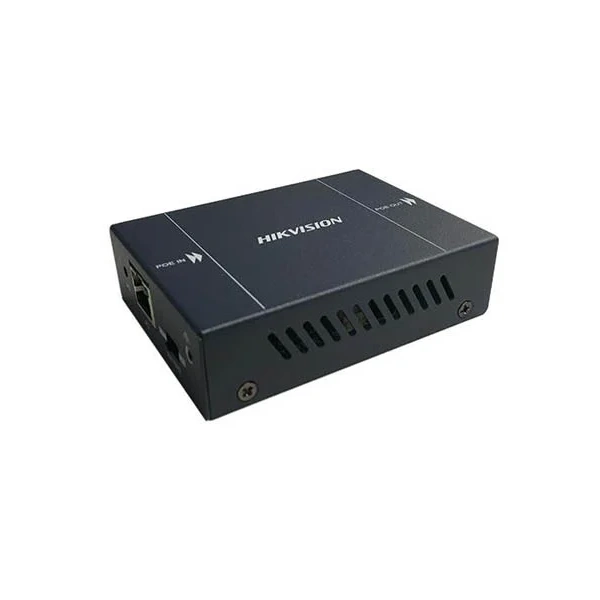

DS-1H34-0101P Hikvision PoE Midspans | Mtech

Description

DS-1H34-0101P Hikvision PoE Midspans, 1-ch 10/100BaseT(X) and IEEE 802.3at standard of PD connection.1-ch 10/100BaseT(X) and IEEE 802.3af/at standard of PSE output.

DS-1H34-0101P Hikvision Specifications:

• Output:

1. 1-channel 10/100BaseT(X) and IEEE 802.3af/at standard PSE output.
2. 2-channel 10/100BaseT(X) and IEEE 802.3af standard PSE outputs.

• MTBF (Mean Time Between Failure): 100,000 hours.
• Consumption: < 2W.
• Working Temperature: -30 ºC to +70 ºC (-22 ºF to +158 ºF).
• Working Humidity: 10% to 90%.
• Dimensions (W×H×D): 71.6 × 26.1 × 95.5 mm (2.8 × 1.0 × 3.8 inch).
• Weight: 0.3 Kg (0.7 lb).
• ESD (Electro-Static Discharge):

1. Contact discharge: ±7 KV.
2. Air discharge: ±9 KV.
3. Surge Power port: Line-to-ground: ±2 KV; Line-to-line: 1 KV.
4. Network port: Line-to-ground: ±4 KV.

• EFT (Electrical Fast Transient Burst) Network port: ±2 KV.

DS-1H34-0101P Hikvision Features and Functions:

• Supports 1-channel input and 1-channel output, as well as 1-channel input and 2-channel output PoE relay function.
• Enables EXTEND mode of PSE (Power Sourcing Equipment) output interface, extending the transmission distance of a single-stage network to 250 meters when activated.
• Utilizes standard Cat. 5e twisted pair cables.
• In 100 Mbps mode, the repeater supports 4-stage cascade with a maximum transmission distance of 500 meters (terminal power consumption < 5W). In EXTEND mode, the maximum transmission distance reaches 400 meters (terminal power consumption < 5W).
• Supports IEEE802.3at and IEEE802.3af for PoE output.
• Equipped with 10/100BaseT(X) (RJ45 interface).
• Compliant with IEEE802.3, IEEE802.3u, and IEEE802.3x network standards.
• Utilizes store-and-forward switching method.
• Offers a data exchange time delay of less than 5 microseconds.
• Wide temperature range models have a working temperature range from -30˚C to 70˚C.
• Housed in a solid metal case of high strength for durability and reliability.
