XNZ-L6320 2MP Network Box Camera Hanwha Techwin WiseNet X Series

• Imaging Device		1/2.8″ CMOS
  Resolution		1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
  Max. Framerate		H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  Min. Illumination		Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(IR LED On)
  Video Out		CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation
  Lens
  Focal Length (Zoom Ratio)		4.44~142.6mm(32x) motorized varifocal
  Max. Aperture Ratio		F1.6(Wide) ~ F4.4(Tele)
  Angular Field of View		H: 61.8°(Wide)~2.19°(Tele), V: 36.2°(Wide)~1.24°(Tele)
  Min. Object Distance		1.5m(4.92ft)
  Focus Control		Auto, One shot AF
  Lens Type		DC auto iris
  Operational
  Camera Title		Displayed up to 85 characters
  Direction Indicator		Support
  Day & Night		Auto(ICR)
  Backlight Compensation		BLC, HLC, WDR, SSDR
  Wide Dynamic Range		120dB
  Digital Noise Reduction		SSNRⅤ
  Digital Image Stabilization		Support
  Defog		Support
  Motion Detection		8ea, 8point polygonal zones
  Privacy Masking		32ea, rectangular Support – Color: Grey/Green/Red/Blue/Black/White – Mosaic
  Gain Control		Low / Middle / High
  White Balance		ATW / AWC / Manual / Indoor / Outdoor
  Electronic Shutter Speed		Minimum / Maximum / Anti flicker (2~1/12,000sec)
  Video Rotation		Flip, Mirror
  Analytics		Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification

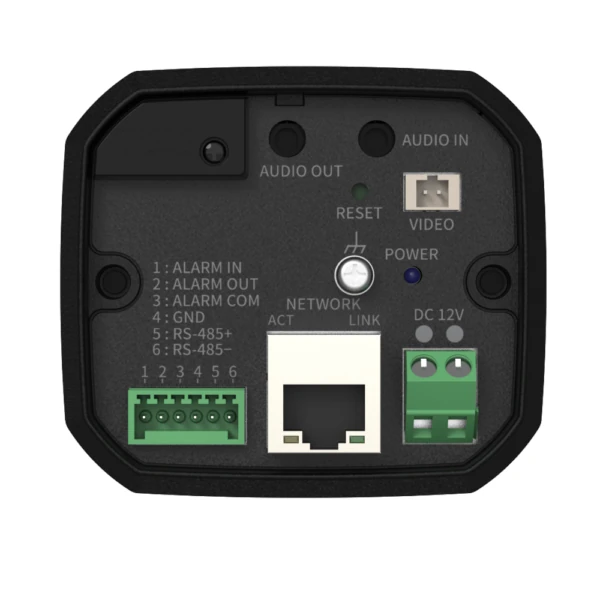

  Alarm I/O		Input 1ea / Output 1ea
  Alarm Triggers		Analytics, Network disconnect, Alarm input
  Alarm Events		File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover
  Audio In		Selectable(Mic in/Line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  Audio Out		Line out, Max. output level: 1Vrms
  Network
  Ethernet		Metal shielded RJ-45(10/100BASE-T)
  Video Compression		H.265/H.264: Main/Baseline/High, MJPEG
  Audio Compression		G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz
  Smart Codec		Manual(5ea area), WiseStreamⅡ
  Bitrate Control		H.264/H.265: CBR or VBR MJPEG: VBR
  Streaming		Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
  Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP
  Security		HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA)
  Application Programming Interface		ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
  General
  Webpage Language		English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
  Edge Storage		Micro SD/SDHC/SDXC 1slot 256GB
  Memory		1024MB RAM, 256MB Flash
  Environmental & Electrical
  Operating Temperature / Humidity		-10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
  Storage Temperature / Humidity		-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
  Input Voltage		PoE(IEEE802.3af, Class3), 12VDC
  Power Consumption		PoE : Max 6.8W, Typical 4.8W 12VDC : Max 5.2W, Typical 3.5W
  Mechanical
  Color / Material		Black / Metal
  RAL Code		RAL9005
  Product Dimensions / Weight		72×63.9×135.4mm(2.83×2.52×5.33″), 480g(1.06 lb)
  DORI (EN62676-4 standard)
  Detect (25PPM/ 8PPF)		Wide: 64.2m(210.62ft) / Tele: 2009.0m(6591.3ft)
  Observe (63PPM/ 19PPF)		Wide: 62.5m(84.32ft) / Tele: 803.6m(2636.5ft)
  Recognize (125PPM/ 38PPF)		Wide: 12.8m(42.1ft) / Tele: 401.8m(1318.3ft)
  Identify (250PPM/ 76PPF)		Wide: 6.4m(21.1ft) / Tele: 200.9m(659.1ft)

• • The latest product information / specification can be found at hanwha-security.com
  • Design and specifications are subject to change without notice.
  • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
