Description

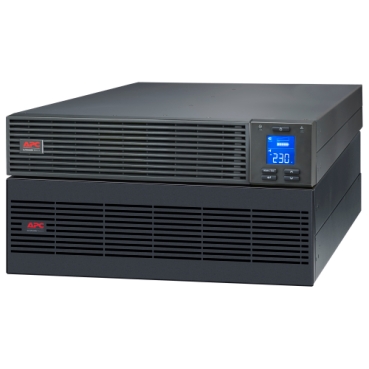

APC SRV10KRILRK SRV RM On-Line 10000VA Easy UPS
Automatic internal bypass: Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
- ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- EPO: Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
- Input Power Factor Correction: This product has a power factor corrected input side ensuring that the input power factor is always 1 regardless of load and mains voltage. A power factor of 1 minimizes installation costs by allowing the use of smaller cables and smaller fuses.
- Intelligent battery management:- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Intelligent SmartSlot: Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
- LCD graphics display:- Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Serial connectivity: Provides management of the UPS via a serial port.
- USB connectivity: USB compatibility and connectivity ensures quick and easy installation of the free PowerChute Personal Edition Software.
APC SRV10KRILRK Tech Specification
- Output Max Configurable Power (Watts) : 10.0kWatts / 10.0kVA
- Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
- Efficiency at Full Load: 94.0 %
- Output Voltage Distortion: 1 %
- Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
- Other Output Voltages: 220 V, 240 V
- Load Crest Factor: 3 : 1
- Topology: Double conversion online
- Waveform type: Sine wave
- Bypass: Internal bypass (automatic and manual)
- Input frequency: 40 – 70 Hz Auto sensing
- Input voltage range for main operations: 110 – 300 Half load, 176 – 300 Full loadV
- Efficiency at Full Load: 94.0 %
- Other Input Voltages: 220 V, 240 V
- Battery type: Lead-acid battery
- Typical recharge time: 9hour(s)
- Nominal Battery Voltage: 240 V
- Expected Battery Life (years): 3 – 5
- Battery Charge Power (Watts): 1.17kWatts
| Colour | Black (RAL 7010) |
|---|---|
| Height | 22 cm |
| Width | 43.8 cm |
| Depth | 61.5 cm |
| Product weight | 78 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input voltage limits | 110…300 V 60 % load 176…300 V full load |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Network frequency | 40…70 Hz auto sensing |
| Run Time | View Runtime Graph
action_new_window
|
|---|---|
| Efficiency | View Efficiency Graph
action_new_window
|
| Battery type | Lead-acid battery |
| Battery voltage | 240 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 5 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 1170 W rated |
| Battery option | SRV240RLBP-9A 1 3024 VAh SRV240RLBP-9A 2 4536 VAh SRV240RLBP-9A 3 6048 VAh SRV240RLBP-9A 4 7560 VAh |
- Data sheet from Vendor :here
