Description

 About HIKVISION DS-7608NXI-K2/8P

   Facial Recognition

• Facial Detection And Analytics Face picture comparison, human face capture, face picture search
• Face Picture Library Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
• Facial Detection And Analytics Performance1-ch human face capture
• Face Picture Comparison4-ch face picture comparison alarm

• Motion Detection 2.0

• Human/Vehicle Analysis8-ch

• Video And Audio

• IP Video Input8-ch
• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth160 Mbps
• HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode HDMI/VGA independent output
• CVBS OutputN/A
• Audio Output1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Two-Way Audio1-ch, RCA (Linear, 1 KΩ)

• Decoding

• Decoding FormatH.265/H.265+/H.264+/H.264
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback8-ch
• Decoding Capability

  AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

  AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

• Stream Type Video, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

• Network

• Remote Connection128
• Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE

• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 80 W
• Standard IEEE 802.3af/at

• Auxiliary Interface

• SATA2 SATA interfaces
• Capacity Up to 10 TB capacity for each HDD
• USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out4/1

• General

• Power Supply48 VDC, 2.5 A
• Consumption≤ 15 W (without HDD, and PoE off)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%

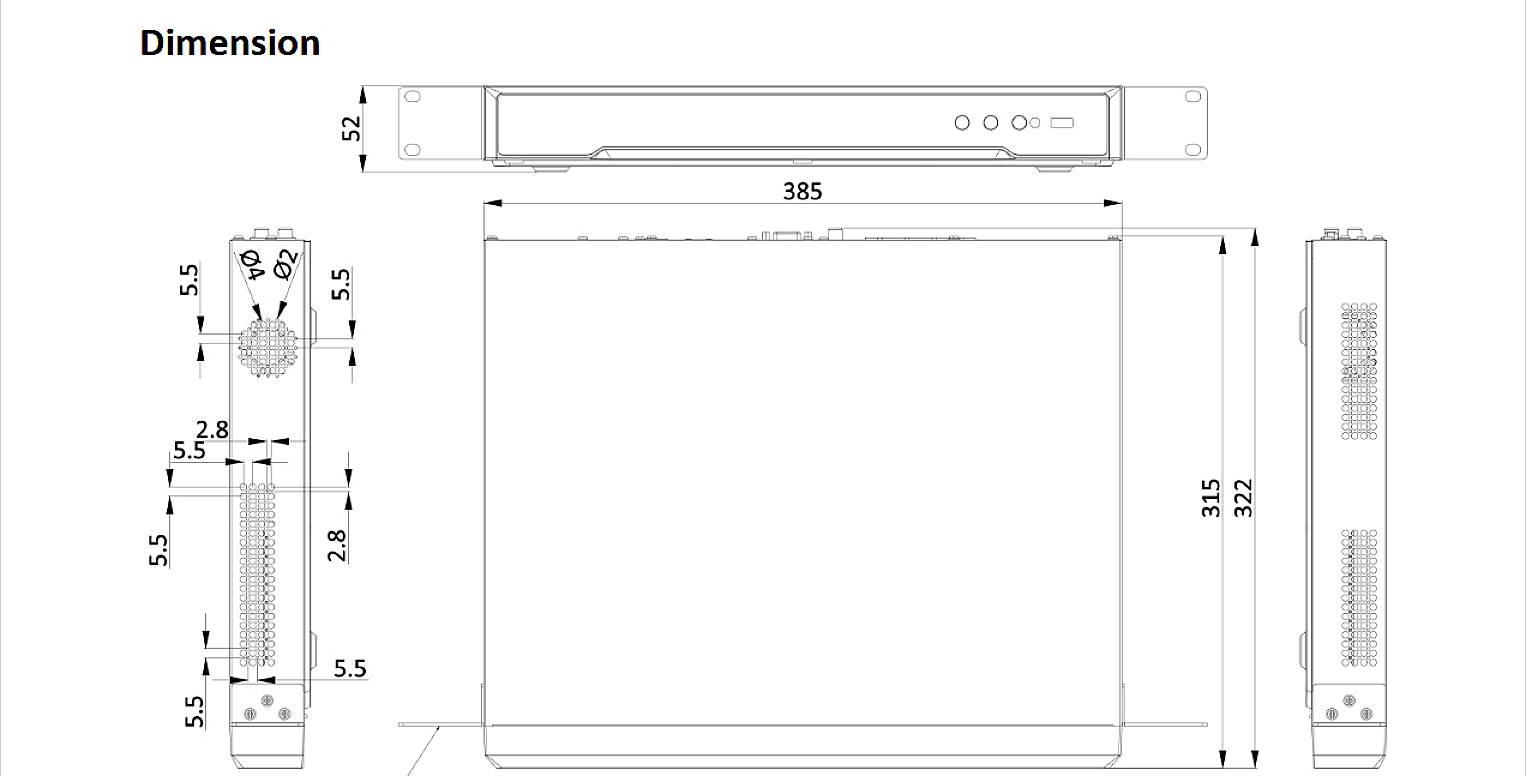

• Dimension (W × D × H)385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
• Weight≤ 3 kg (without HDD, 6.6 lb.)

• Certification
• FCC Part 15 Subpart B, ANSI C63.4-2014
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Manufacturer Hilkinson

Additional information
