Description

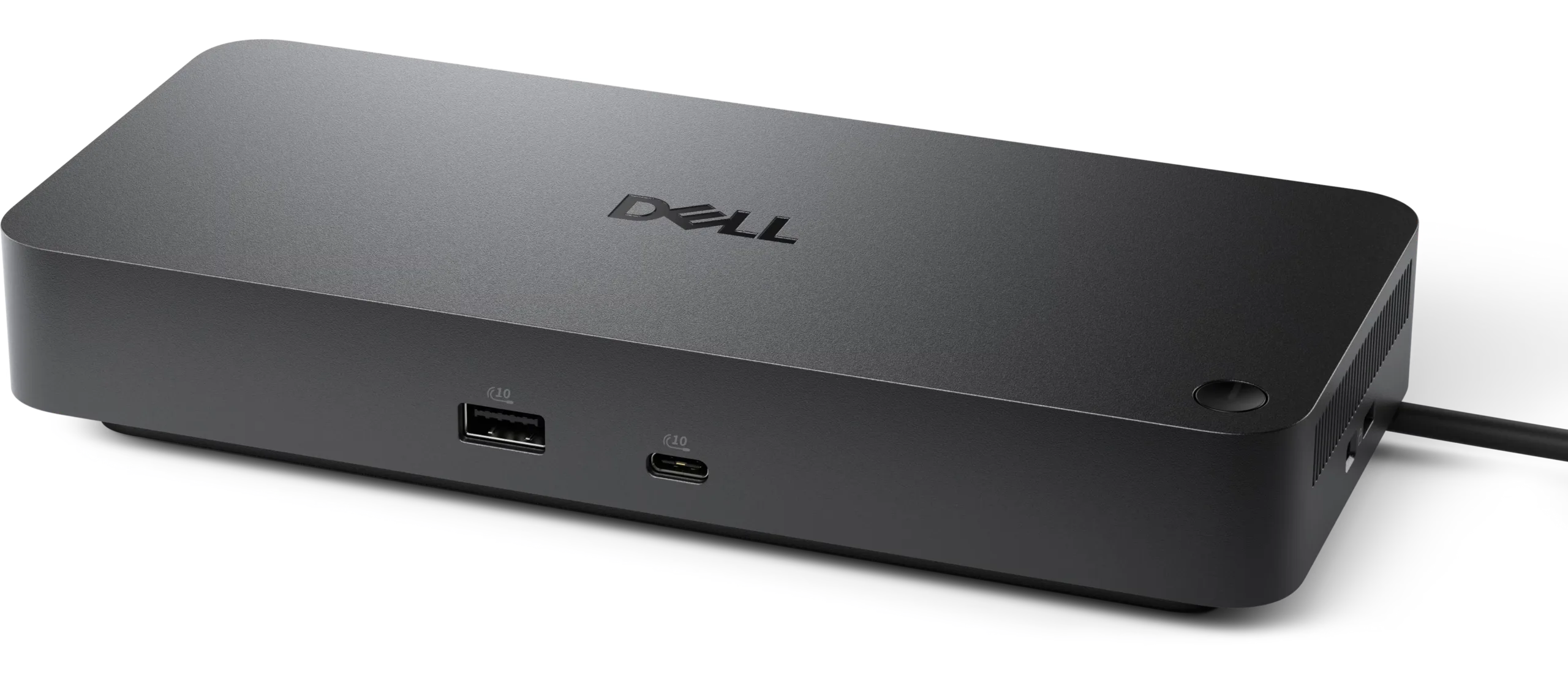

📋 Complete Technical Specifications DELL PRO SMART DOCK SD25, 210-BRFM

• Total Power Budget: Accompanied by a heavy-duty 180W Power Adapter.
• Host Power Delivery:
  • Supplies up to 130W Power Delivery to compatible Dell laptops over a single integrated USB-C link.
  • Supplies up to 96W Power Delivery to non-Dell/third-party host notebooks.

• Off-PC Charging: Continuously distributes independent power downstream to connected cellular accessories or wireless peripherals regardless of whether a laptop is docked.

• Single Display: Up to 6K (6144 x 3456) @ 60Hz.
• Dual Display: Up to 2x 5K (5120 x 2160) @ 60Hz.
• Triple/Quad Display: Up to 4x WQHD (3440 x 1440) @ 60Hz.

• Video Outputs:
  • 2 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x USB-C 3.2 Gen 2 Multi-function link (supports DisplayPort 1.4 Alternate Mode @ 7.5W power out)

• Data Ports:
  • 4 x USB-A 3.2 Gen 2 (10 Gbps speeds, providing up to 4.5W power per port)
  • 1 x USB-C 3.2 Gen 2 (10 Gbps speeds, providing up to 15W charging power)

• Network Layout:
  • 1 x High-speed 2.5 Gigabit Ethernet (RJ45) port to eliminate data transfer bottlenecks.

• Network Protocols: Full physical support for MAC Address Pass-Through, PXE Boot, and Wake-On-LAN across target architectures.
• Hardware Control Sync: The integrated dock power toggle mimics the behavior of host laptop operations smoothly on supported models.
• Operating System Support: Certified for cross-platform integration across Windows 10, Windows 11, Ubuntu Linux, Red Hat Enterprise Linux (RHEL), and ChromeOS.
• Security Mechanisms: Built-in hardware-based tamper resistance, enterprise WPA-3 192-bit Wi-Fi encryption for management protocols, and a baseline Kensington lock slot slot.
