AVAYO unshielded 2 to 200 insulated, color coded, copper wires twisted in to pairs, cabled together and over all jacketed with PVC or with halogen free compound, designed to support for all category 3 requirements.
AVAYO unshielded 2 to 200 insulated, color coded, copper wires twisted in to pairs, cabled together and over all jacketed with PVC or with halogen free compound, designed to support for all category 3 requirements.
| Conductor Material | : Bare Copper |
| Size | : 26 AWG |
| Diameter | : 0.403 mm |
| Insulation Material | : HD-PE |
| Thickness | : Minimum at any point 0.14mm, Maximum Average 0.17mm |
| Diameter | : 0.84 +_ 0.03mm |
| Colors | : Multi color coded |
| Twisting Lay Length (mm) | : 21 Underneath |
| Cabling Lay Length (mm) | : 130 Underneath |
| Jacket Material | : PVC compound or LSZH Halogen free flame retardant |
| Thickness | : Minimum at any point 0.47mm, Maximum Average 0.50mm |
| Colors | : Light Grey RAL 7035. |
| Pulling Force | : 100 N Maximum. |
| Short Term Bend Radius | : 8 X OD mm |
| Long Term Bend Radius | : 4 X OD mm |
| Operating Temperature | : -20??C to +60??C |
| Marking on Jacket | : AVAYO / cable description/meter mark. |
| Cable Access | : Bottom cable entry protected with gaskets. |
%20cable%20-%20Outdoor.jpg "Category 3 Unshielded Twisted Pair (UTP) cable - Indoor 2")

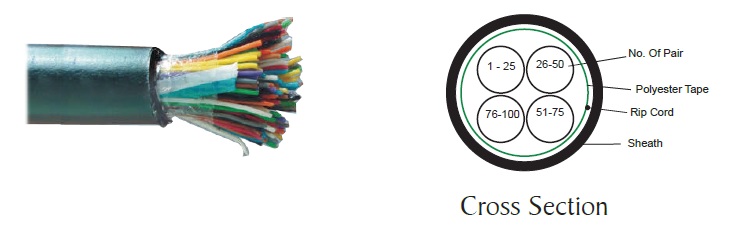

AVAYO unshielded 2 to 400 insulated, color coded, copper wires twisted in to pairs, cabled together and tape wrapped, jelly filling and over all jacketed with UV resistant jacketing, designed to support for all category 3 requirements
| Conductor Material | : Bare Copper |
| Size | : 26 AWG |
| Diameter | : 0.403 mm |
| Insulation Material | : HD-PE |
| Thickness | : Minimum at any point 0.14mm, Maximum Average 0.17mm |
| Diameter | : 0.84 +_ 0.03mm |
| Colors | : Multi color coded |
| Twisting Lay Length (mm) | : 21 Underneath |
| Cabling Lay Length (mm) | : 130 Underneath |
| Jacket Material | : UV resistant PE jacketing |
| Filling | : Petroleum Jelly |
| Over all Wrap | : Plastic Tape. |
| Colors | : Black. |
| Pulling Force | : 100 N Maximum. |
| Short Term Bend Radius | : 8 X OD mm |
| Long Term Bend Radius | : 4 X OD mm |
| Operating Temperature | : -20??C to +60??C |
| Marking on Jacket | : AVAYO / cable description/meter mark. |
