Description

Overview

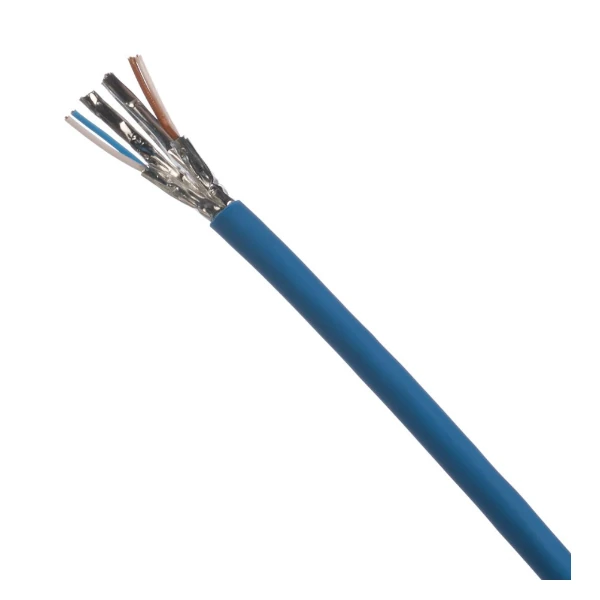

The NUL6X04WH-HEG NetKey™ Cat 6A U/UTP Copper Cable is designed to deliver high-performance data transmission for indoor installations. Featuring 23 AWG solid copper conductors and LSZH (Low Smoke Zero Halogen) insulation, it ensures superior safety and performance. This cable supports high-speed networking, including PoE (Power over Ethernet) applications, and meets stringent flame-retardant and EuroClass Cca standards. With a robust design and compliance with global standards, it is ideal for enterprise networks, data centers, and high-density environments requiring reliable and safe connectivity. Spec

NUL6X04WH-HEG Specifications

• Note: Available in Europe
• Environment: Indoor
• Performance Level: Category 6A
• Cable Construction: U/UTP
• EuroClass Rating: Cca-s1a,d1,a1
• Resistance Properties: Flame-Retardant
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Nominal Cable Diameter:
  • Inches: 0.279
  • Millimeters: 7.1
• Sub Brand: NetKey®
• Maximum Installation Tension:
  • N: 110
  • lb: 25
• Bend Radius:
  • Inches: 2.24
  • Millimeters: 56
• Number of Pairs: 4
• Conductor Material: Copper
• Conductor Type: Solid
• Overall Length:
  • Feet: 1,000
  • Meters: 305
• Conductor Gauge (AWG): 23
• Insulation Material: Polyolefin
• Insulation Diameter:
  • Inches: 0.047
  • Millimeters: 1.2
• Acidity Rating: a1
• Maximum Voltage (V): 80
• Standards Met:
  • Exceeds ISO 11801 Class EA and ANSI/TIA-568.2-D Category 6A
  • IEC 61156-5, IEC 60332-1, IEC 60754, IEC 61034
  • EN 50575: Euroclass Cca-s1a,d1,a1
  • IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt (PoE applications)
  • RoHS Compliant
• Color: Blue
• Flaming Droplets Rating: d1
• Smoke Rating: s1a
• EuroClass Flame Rating: Cca
• Packaging Type: Reel

Packaging Details

• UPC: 61305636546
• Standard Package Quantity: 1
• Standard Package Volume (cf): 1.7521
• Standard Carton Quantity: 24
• Standard Carton Volume (cf): 42.0500

Key Features

• High-Performance Connectivity: Delivers Cat 6A performance for 10 Gigabit Ethernet applications.
• Enhanced Crosstalk Protection: Alien crosstalk barrier ensures signal integrity.
• LSZH Jacket: Low smoke zero halogen for safer installation in indoor environments.
• Versatile Applications: Ideal for enterprise networks, data centers, and smart home systems.
