Description

Overview

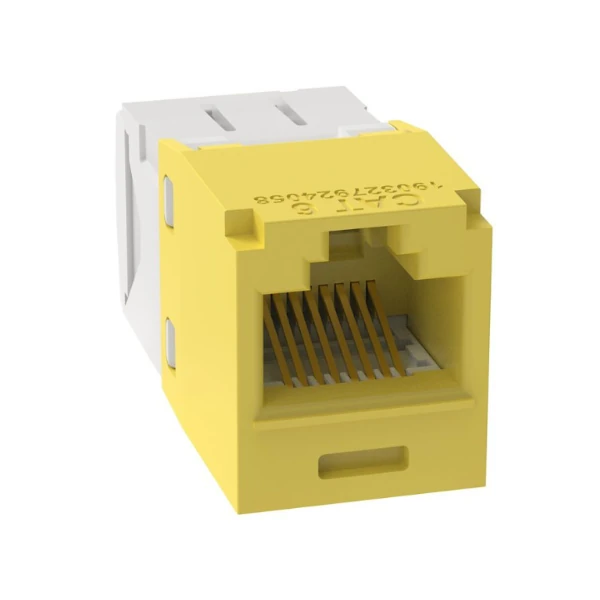

The CJ688TGYL Mini-Com® Cat 6 UTP RJ45 TG Jack Module is designed for terminating 4-pair, 22-26 AWG twisted pair cables. Its TG style termination eliminates the need for a tool, ensuring quick and easy installation. This module exceeds industry standards and is compatible with Mini-Com Modular Patch Panels and Faceplates. Each module is individually serialized for traceability. Spec

CJ688TGYL Specifications

• Product Type: Jack Module
• Performance Level: Category 6
• Connector Type: Jack Module – Standard
• Termination Style: TG Style (Toolless Grounding)
• Body Material: Polycarbonate
• Contact Material: Plated Phosphor Bronze
• Module Type: Mini-Com®
• Wiring Scheme: T568A/T568B
• Shield Type: Unshielded (UTP)
• Sub Brand: Pan-Net®
• Color: Yellow

Temperature Range

• Operating Temperature: -10°C to 75°C (14°F to 167°F)
• Storage Temperature: -40°C to 75°C (-40°F to 167°F)

Standards Met

• Exceeds component and channel requirements of ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards
• Supports 10GBASE-T transmission over twisted-pair cabling systems in a 4-connector configuration
• Meets IEEE 802.3af / 802.3at (PoE) and proposed 802.3bt Type 3 & Type 4 standards
• UL 1863 and UL 2043 compliant
• RoHS Compliant

Durability

• Rated for 2500 cycles, ensuring long-term reliability
• Heat-resistant design for harsh environments

Key Features

• Toolless Grounding (TG) Style Termination: Eliminates the need for a termination tool, making installation faster and easier.
• Durable Construction: Polycarbonate body with plated phosphor bronze contacts for long-lasting durability.
• Standards Compliance: Meets the latest industry standards, including ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E for high-performance networking.
• Compatibility: Fully compatible with Mini-Com Modular Patch Panels and Faceplates for seamless integration into existing setups.
• Temperature Resilience: Operates in a broad temperature range, making it suitable for various environments.
